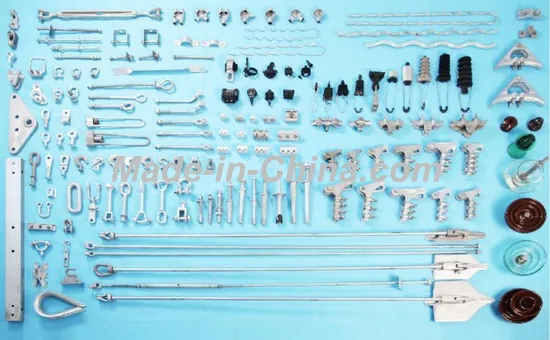

Transmission Line Fyh Preformed Armour Rod
Good quality transmission line hardware and cable clamp, aluminum alloy made with less weight but with higher mechanical
Send your inquiryDESCRIPTION
Basic Info.
Model NO. | FYH |
HS Code | 8537109090 |
Production Capacity | 5, 000, 000 Per Year |
Product Description
Good quality transmission line hardware and cable clamp, aluminum alloy made with less weight but with higher mechanical strength and performance. Exported to many countries.The body and jumper clamp are made of aluminum, other parts are made of hot-dip galvanized steel.
Manufacture standards can be GB or IEL as client's requirement.
FYH Series Preformed Armour Rod | ||||||
Type No. | Suitable conductor | Dimensions (mm) | A group number | Weight | ||
D | d | L | (Kg) | |||
FYH-95/15 | LGJ-95/15 | 3.6 | 11.4 | 1400 | 13 | 0.5 |
FYH-95/20 | LGJ-95/20 | 3.6 | 11.4 | 1400 | ||
FYH-95/55 | LGJ-95/55 | 3.6 | 13.3 | 1500 | 16 | 0.6 |
FYH-120/7 | LGJ-120/7 | 3.6 | 12.0 | 1400 | 14 | 0.6 |
FYH-120/20 | LGJ-120/20 | 3.6 | 12.5 | 1400 | ||
FYH-120/25 | LGJ-120/25 | 3.6 | 13.0 | 1400 | ||
FYH-120/70 | LGJ-120/70 | 4.6 | 14.9 | 1800 | 14 | 0.8 |
FYH-150/8 | LGJ-150/8 | 3.6 | 13.3 | 1500 | 16 | 0.6 |
FYH-150/20 | LGJ-150/20 | 3.6 | 14.7 | 1500 | 16 | 0.7 |
FYH-150/25 | LGJ-150/25 | 3.6 | 14.2 | 1500 | ||
FYH-150/35 | LGJ-150/35 | 3.6 | 14.5 | 1500 | ||
FYH-185/10 | LGJ-185/10 | 4.6 | 14.9 | 1800 | 14 | 1.2 |
FYH-185/25 | LGJ-185/25 | 4.6 | 15.7 | 1800 | 14 | 1.3 |
FYH-185/30 | LGJ-185/30 | 4.6 | 15.7 | 1800 | ||
FYH-185/45 | LGJ-185/45 | 4.6 | 16.3 | 1800 | ||
FYH-210/10 | LGJ-210/10 | 4.6 | 15.9 | 1800 | 14 | 1.3 |
FYH-210/25 | LGJ-210/25 | 4.6 | 16.6 | 1800 | ||
FYH-210/35 | LGJ-210/35 | 4.6 | 16.9 | 1800 | ||
FYH-210/50 | LGJ-210/50 | 4.6 | 17.3 | 1800 | ||
FYH-240/30 | LGJ-240/30 | 4.6 | 17.9 | 1900 | 16 | 1.4 |
FYH-240/40 | LGJ-240/40 | 4.6 | 17.9 | 1900 | ||
FYH-240/55 | LGJ-240/55 | 4.6 | 17.9 | 1900 | ||
FYH-300/15 | LGJ-300/15 | 6.3 | 18.6 | 2000 | 14 | 2.3 |
FYH-300/20 | LGJ-300/20 | 6.3 | 19.1 | 2000 | ||
FYH-300/25 | LGJ-300/25 | 6.3 | 19.4 | 2000 | ||
FYH-300/40 | LGJ-300/40 | 6.3 | 19.7 | 2000 | ||
FYH-300/50 | LGJ-300/50 | 6.3 | 19.9 | 2000 | ||
FYH-300/70 | LGJ-300/70 | 6.3 | 20.1 | 2000 | ||
FYH-400/20 | LGJ-400/20 | 6.3 | 20.9 | 2000 | ||
FYH-400/25 | LGJ-400/25 | 6.3 | 22.1 | 2200 | 14 | 2.8 |
FYH-400/35 | LGJ-400/35 | 6.3 | 22.3 | 2200 | ||
FYH-400/50 | LGJ-400/50 | 6.3 | 23.0 | 2200 | ||
FYH-400/65 | LGJ-400/65 | 6.3 | 23.2 | 2200 | ||
FYH-400/35 | LGJ-400/35 | 7.8 | 24.8 | 2500 | ||
FYH-500/35 | LGJ-500/35 | 7.8 | 24.9 | 2500 | 16 | 3.5 |
FYH-500/45 | LGJ-500/45 | 7.8 | 24.9 | 2500 | ||
FYH-500/65 | LGJ-500/65 | 7.8 | 25.7 | 2500 | ||
FYH-630/45 | LGJ-630/45 | 7.8 | 27.9 | 2500 | 15.0 | 5.3 |
FYH-630/55 | LGJ-630/55 | 7.8 | 28.5 | 2500 | ||
FYH-630/80 | LGJ-630/80 | 7.8 | 28.9 | 2500 | ||
FYH-800/55 | LGJ-800/55 | 7.8 | 31.8 | 2500 | 17 | 6.0 |
FYH-800/70 | LGJ-800/70 | 7.8 | 32.1 | 2500 | ||
FYH-800/100 | LGJ-800/100 | 7.8 | 32.3 | 2500 | ||
Related Products
-
Iron Gate Hinge Furniture Fittings and Accessories
-
CNC Machined Iron for Casting Motor Parts/Motorcycle Accessories
-
Custom Construction Machinery/Machine Spare Parts Components/Accessory with CNC Machining/Turning/Stamping OEM Casting Iron/Metal Parts
-

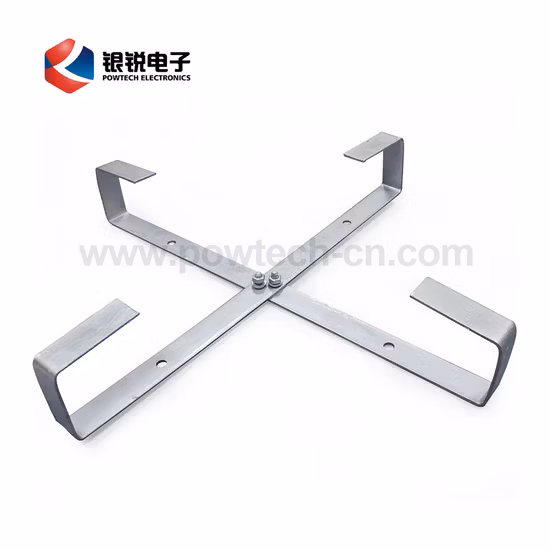

Galvanized Steel Cable Storage Assembly for Pole
